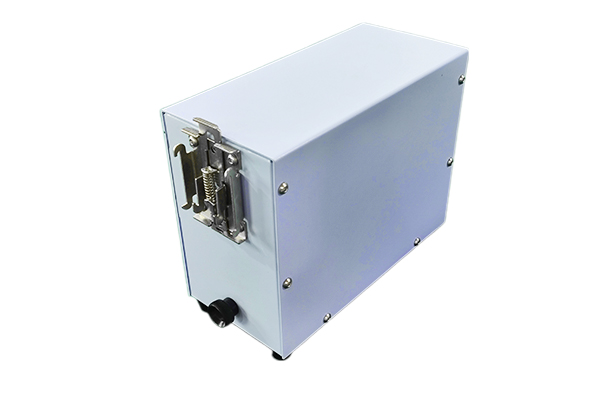

A28 Air Leak Tester

PA28
The air leak tester is a new type of non-destructive high-precision testing equipment. It mainly uses compressed air to apply a certain pressure to the outside or inner cavity of the product to be tested, and then detects the pressure change to determine the sealing of the product to be tested.
Product application areas: automotive, new energy, home appliances, consumer electronics, medical, aviation, outdoor security and valve body leak tester testing.

Consult

Features
Technical Indicators
Overall Dimension

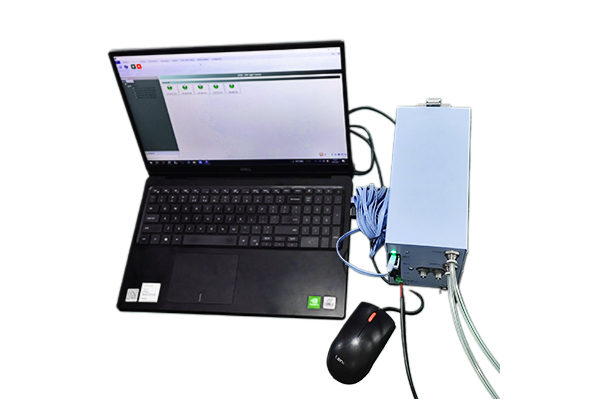

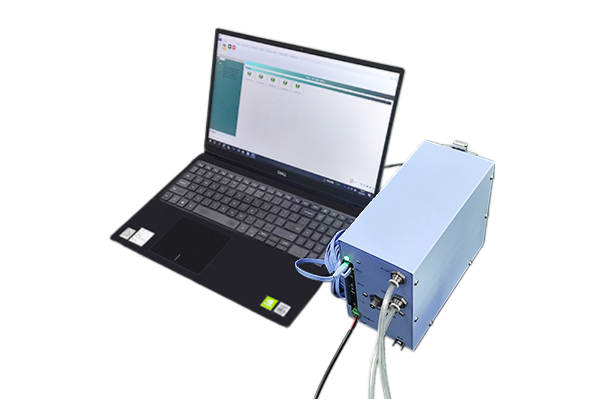

The differential pressure type supports seamless switching with ATEQ F28. Supports up to 32 groups of test parameter configurations and supports continuous testing of multiple groups of configurations. With 7 output ports and 6 input ports, it supports dynamic settings of IO ports without the need for additional PLC control. Supports multi-machine cascade testing, and cooperates with the Presun test application software to achieve multi-machine monitoring, test data statistical analysis, and database storage, etc. Compact size, very easy to embed in automatic equipment or assembly lines. Has higher cost performance and price advantages.
Model Selection
Product Series
Pressure Type
Differential pressure range
Test pressure range
A28

P:Positive pressure

L:-1KPa～1KPa
M:-6KPa～6KPa
A:Other ranges
L:0～100 KPa
M:5～350 KPa
H:10～700 KPa
A:Other ranges
A28
P
M
M

A28 series differential pressure instrument performance parameters
Measuring range
0~1000KPa
Sensor accuracy
±0.075%FS
Effective resolution
0.1Pa
Test pressure unit
Pa, KPa, bar, mbar, psi, mmH2O
Leakage unit
Pa, Pa/s, ml/min, sccm
Number of test parameter groups
32 groups
RS232/RS485 interface
Support
Industrial Ethernet interface
Support
Modbus RTU, Modbus TCP/IP protocol
Support

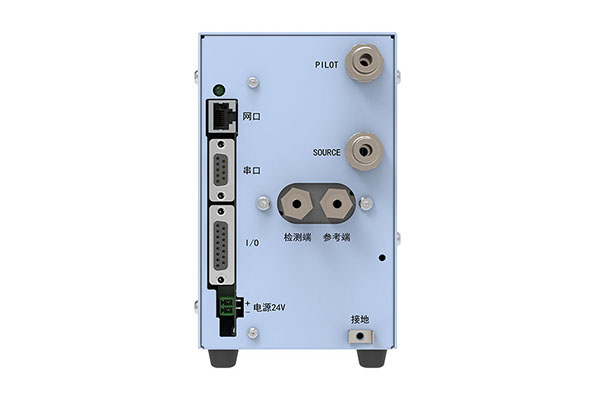

I/O interface
6 input ports/7 output ports

Model Selection
Product Series	Pressure Type	Differential pressure range	Test pressure range
A28	P:Positive pressure	L:-1KPa～1KPa M:-6KPa～6KPa A:Other ranges	L:0～100 KPa M:5～350 KPa H:10～700 KPa A:Other ranges
A28	P	M	M

A28 series differential pressure instrument performance parameters
Measuring range	0~1000KPa
Sensor accuracy	±0.075%FS
Effective resolution	0.1Pa
Test pressure unit	Pa, KPa, bar, mbar, psi, mmH2O
Leakage unit	Pa, Pa/s, ml/min, sccm
Number of test parameter groups	32 groups
RS232/RS485 interface	Support
Industrial Ethernet interface	Support
Modbus RTU, Modbus TCP/IP protocol	Support
I/O interface	6 input ports/7 output ports
