E Series Air Leak Tester

Professional Air Leak Tester
PA-E

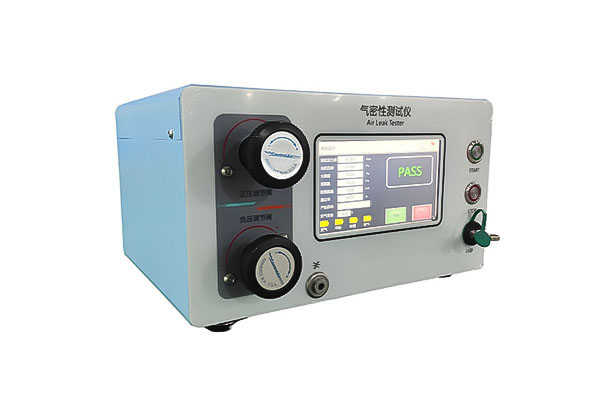

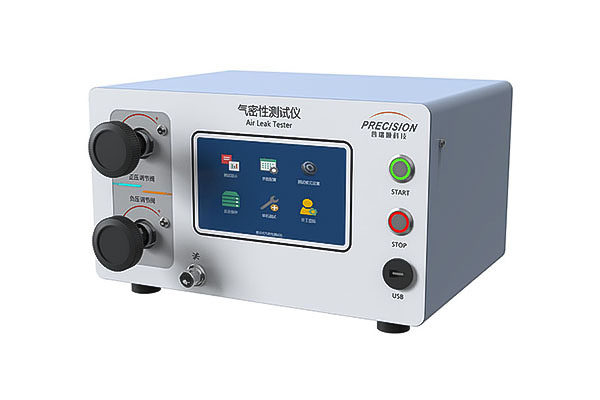

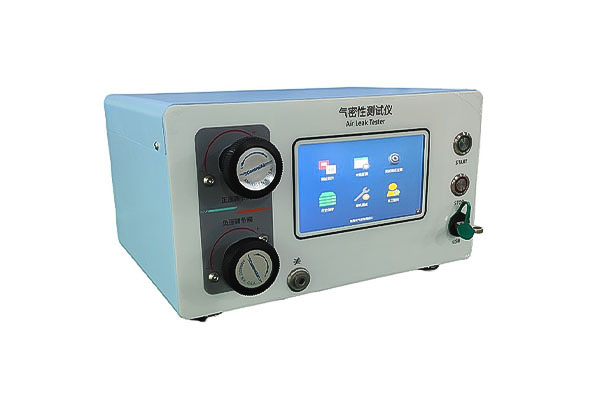

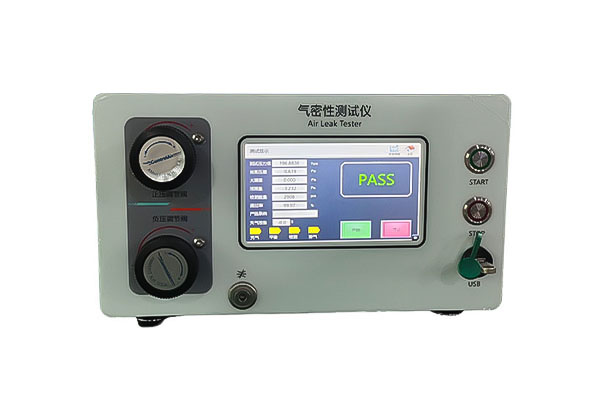

The PA-E air leak tester is a new type of non-destructive high-precision testing equipment. It mainly uses compressed air to apply a certain pressure to the outside or inner cavity of the product to be tested, and then detects the pressure change to determine the sealing of the product to be tested.

Product application areas: automotive, new energy, home appliances, consumer electronics, medical, aviation, outdoor security and valve body leak tester testing.

Consult

Features
Technical Indicators
Overall Dimension


Model Selection Product Series Test Mode Pressure Type Differential Pressure Range Pressure Regulation Method Valve island Type Number of Channels Sensor Accuracy Test pressure Range E D: Differential P:Positive N:Negtive M:Both Positive and Negtive L:-1KPa～1KPa M:-6KPa～6KPa A:Other M: Mechanical E: Electric 02: Standard C1: Single C2: Dual L:±0.075%FS L:5～200 KPa M:5～350 KPa H:10～700 KPa V:-5～-80 KPa A: Other E D M M M 2 C1 L L Flagship differential pressure instrument performance parameters Test pressure range L M H V Pressure regulation (mechanical pressure regulation) 5～200KPa 5～350KPa 10～700KPa -5～-80KPa Pressure regulation (electronic pressure regulation) 5～200KPa 5～500KPa 10～900KPa -5～-80KPa Pressure regulation accuracy Mechanical pressure regulation: ±0.05%FS Electric pressure regulation: ±0.5%FS Difference pressure range L:-1000Pa～1000Pa M:-6000Pa～6000Pa Differential pressure sensor accuracy ±0.075%FS Effective resolution 0.1Pa Test pressure unit Pa, KPa, bar, mbar, psi, mmH2O Leakage unit Pa, Pa/s, ml/min, sccm Language Chinese, English Number of program channels 32 groups Test mode Differential pressure type Display 7-inch touch screen Historical data display and storage Support USB interface 1, support U disk data export, support USB interface barcode scanner Communication method RS232/RS485 (choose one of the two), network port, Modbus RTU, Modbus TCP/IP protocol I/O interface 6 I/7 O

Model Selection
Product Series	Test Mode	Pressure Type	Differential Pressure Range	Pressure Regulation Method	Valve island Type	Number of Channels	Sensor Accuracy	Test pressure Range
E	D: Differential	P:Positive N:Negtive M:Both Positive and Negtive	L:-1KPa～1KPa M:-6KPa～6KPa A:Other	M: Mechanical E: Electric	02: Standard	C1: Single C2: Dual	L:±0.075%FS	L:5～200 KPa M:5～350 KPa H:10～700 KPa V:-5～-80 KPa A: Other
E	D	M	M	M	2	C1	L	L

Flagship differential pressure instrument performance parameters
Test pressure range	L	M	H	V
Pressure regulation (mechanical pressure regulation)	5～200KPa	5～350KPa	10～700KPa	-5～-80KPa
Pressure regulation (electronic pressure regulation)	5～200KPa	5～500KPa	10～900KPa	-5～-80KPa
Pressure regulation accuracy	Mechanical pressure regulation: ±0.05%FS Electric pressure regulation: ±0.5%FS
Difference pressure range	L:-1000Pa～1000Pa M:-6000Pa～6000Pa
Differential pressure sensor accuracy	±0.075%FS
Effective resolution	0.1Pa
Test pressure unit	Pa, KPa, bar, mbar, psi, mmH2O
Leakage unit	Pa, Pa/s, ml/min, sccm
Language	Chinese, English
Number of program channels	32 groups
Test mode	Differential pressure type
Display	7-inch touch screen
Historical data display and storage	Support
USB interface	1, support U disk data export, support USB interface barcode scanner
Communication method	RS232/RS485 (choose one of the two), network port, Modbus RTU, Modbus TCP/IP protocol
I/O interface	6 I/7 O
